Swelab

Connect and communicate like never before

To its traditional virtues of reliability and accuracy, Swelab Lumi adds better connectivity and improved communication protocols. Laboratories can now exchange patient results and quality control data with interested parties quicker and more securely than ever before.

All analyzers feature a host of connection possibilities for printers, keyboards, barcode readers, USBs, etc. This improved connectivity is very easy to use, as the back-panel 4 USB port demonstrates.

Modern graphical interface boosts user-friendliness

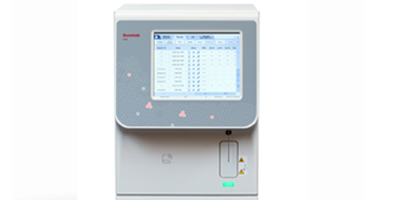

Already renowned for its ease-of-use, Swelab Lumi includes a 10.4 inches high resolution TFT touch screen with a landscape view.

Simple-to-read and easy-on-the-eye, this modern interface boosts Swelab’s user-friendliness even more. Different set-up views, each optimized for different user situations, facilitate routine use. The most common include a sample view showing ‘classical’ graphs and all parameters.

WBC 5-part differentiation

25 reportable parameters and 4 research parameters. 3 histograms for WBC, RBC and PLT. Providing excellent differentiation with 3D scatter technology for:

  • Eosinophiles (EOS)
  • Neutrophils (NEU)
  • Monocytes (MON)
  • Lymphocytes (LYM)
  • Basophiles (BAS)
5-part diff or CBC-count mode switch

One click option to switch between full 5-Part Diff or CBC-count at each sample.RBC and PLT are counted and sorted by the Impedance method. This method is based on the measurement of changes in electrical impedance produced by a particle passing through an aperture.

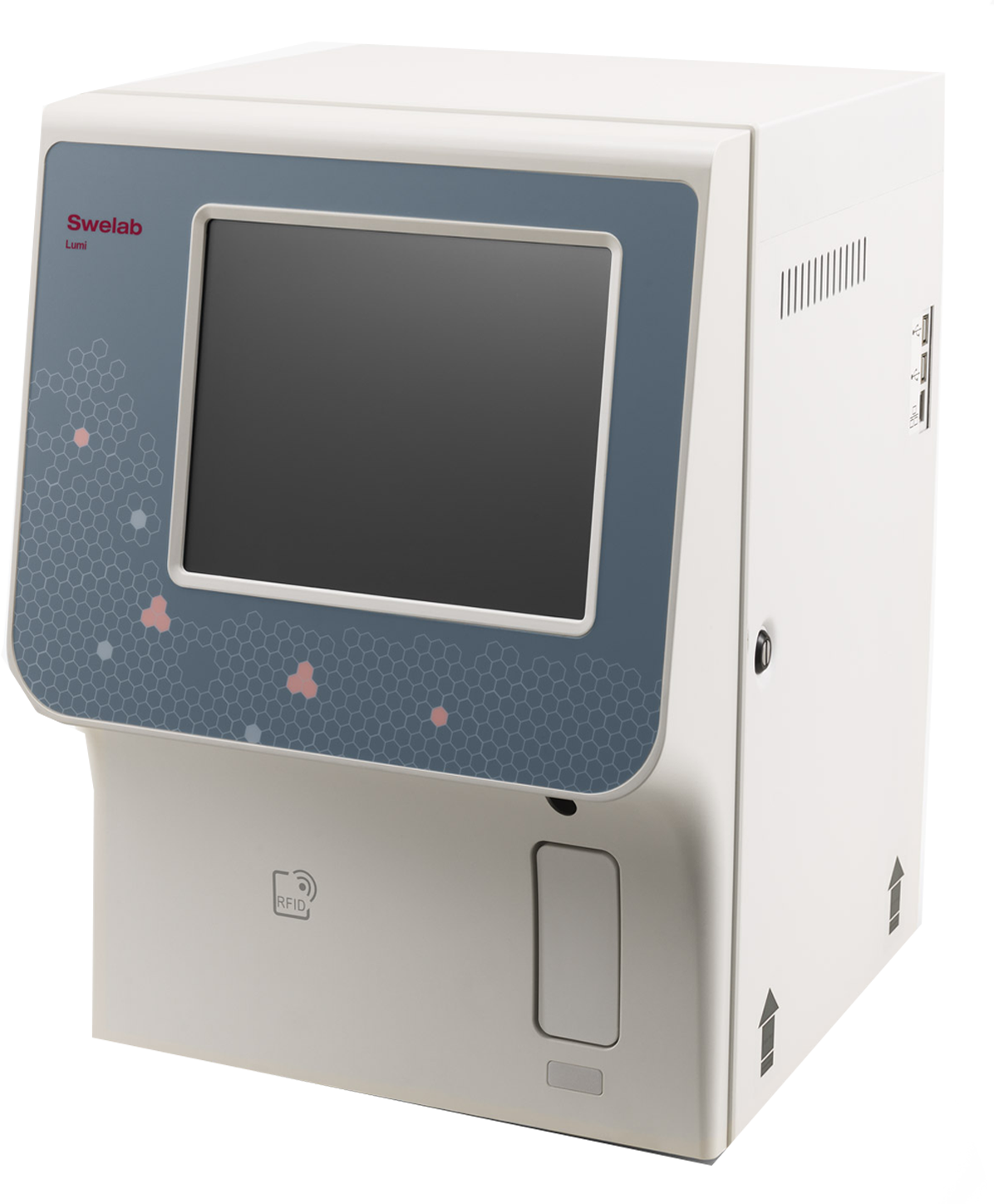

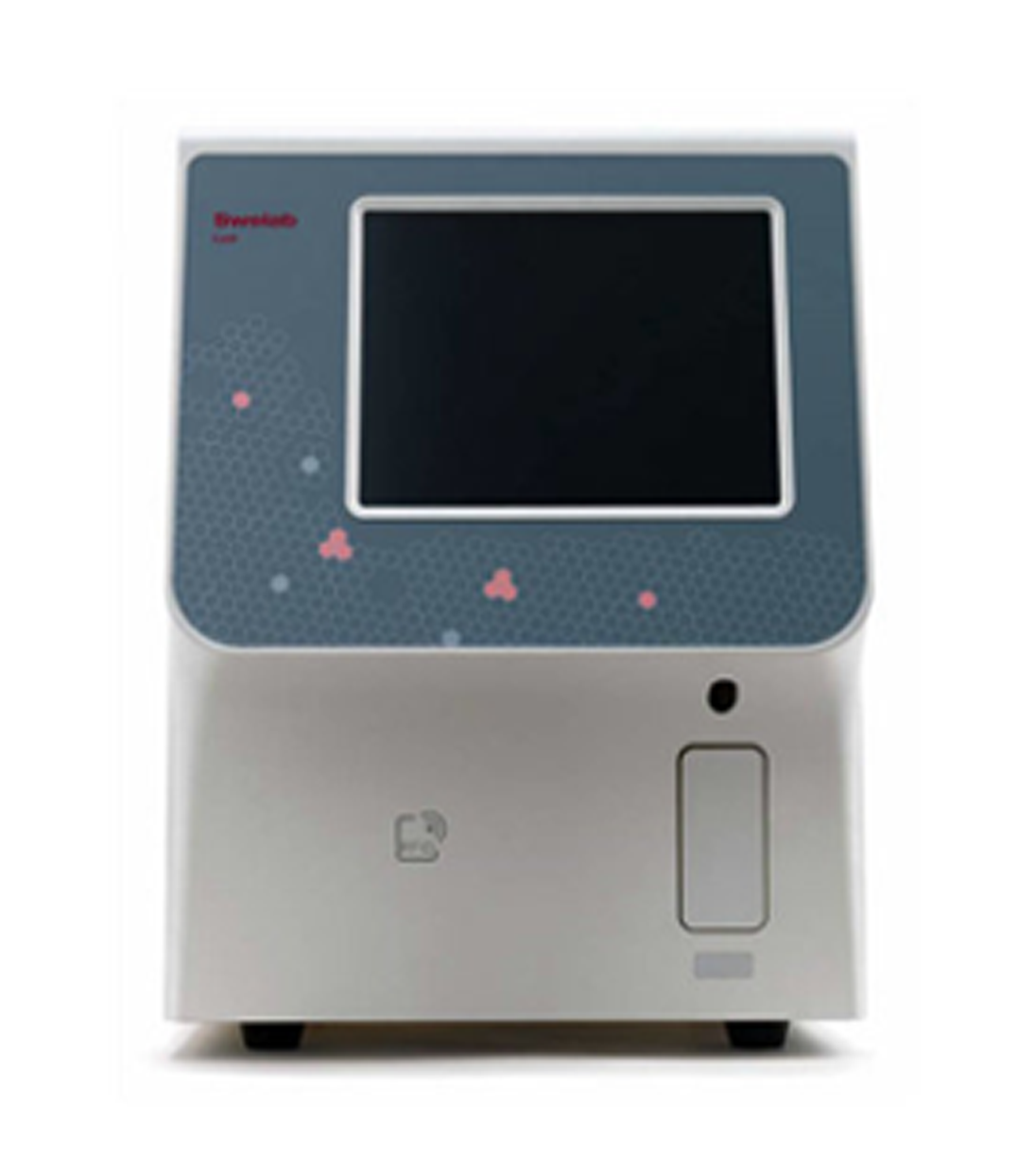

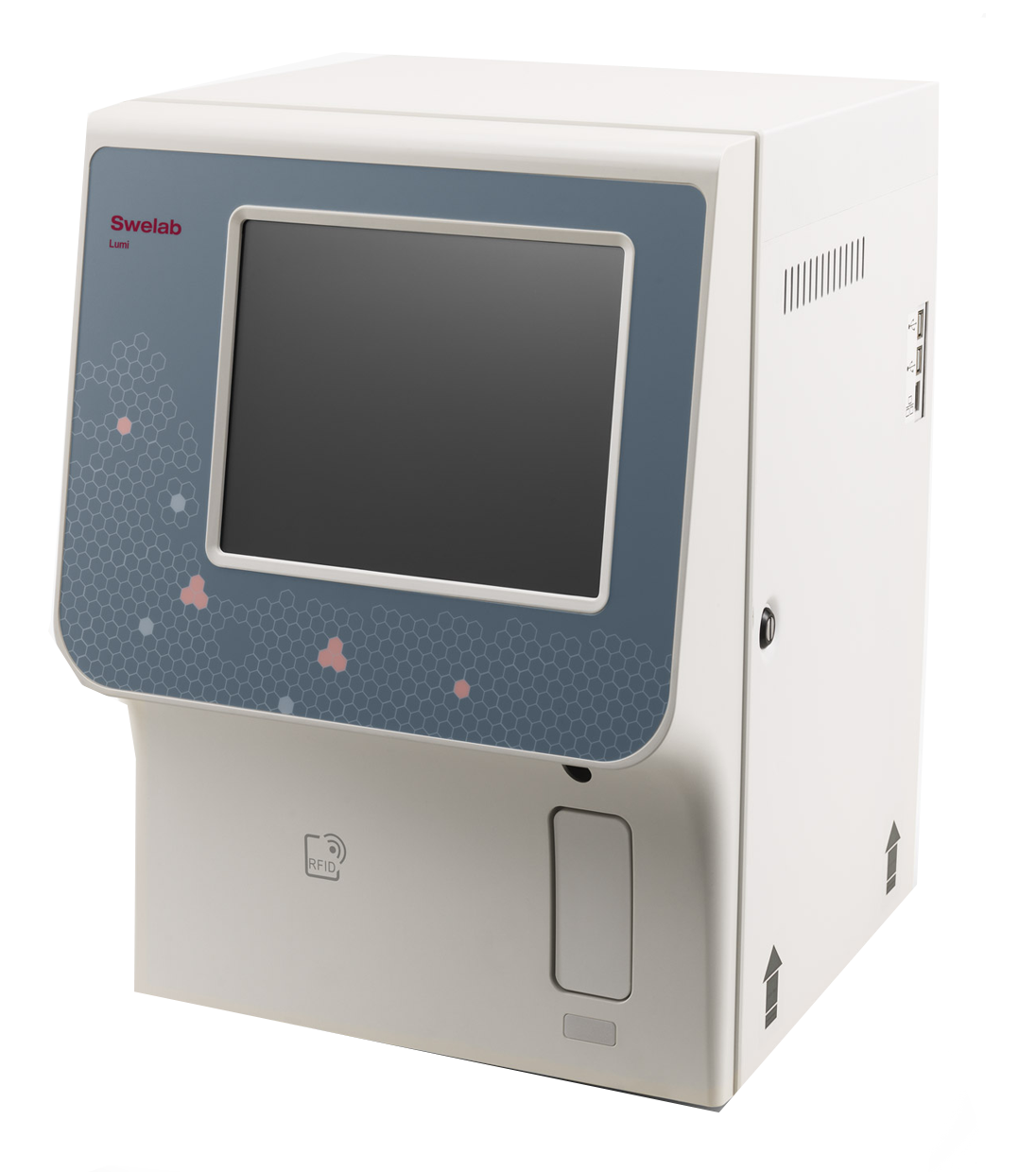

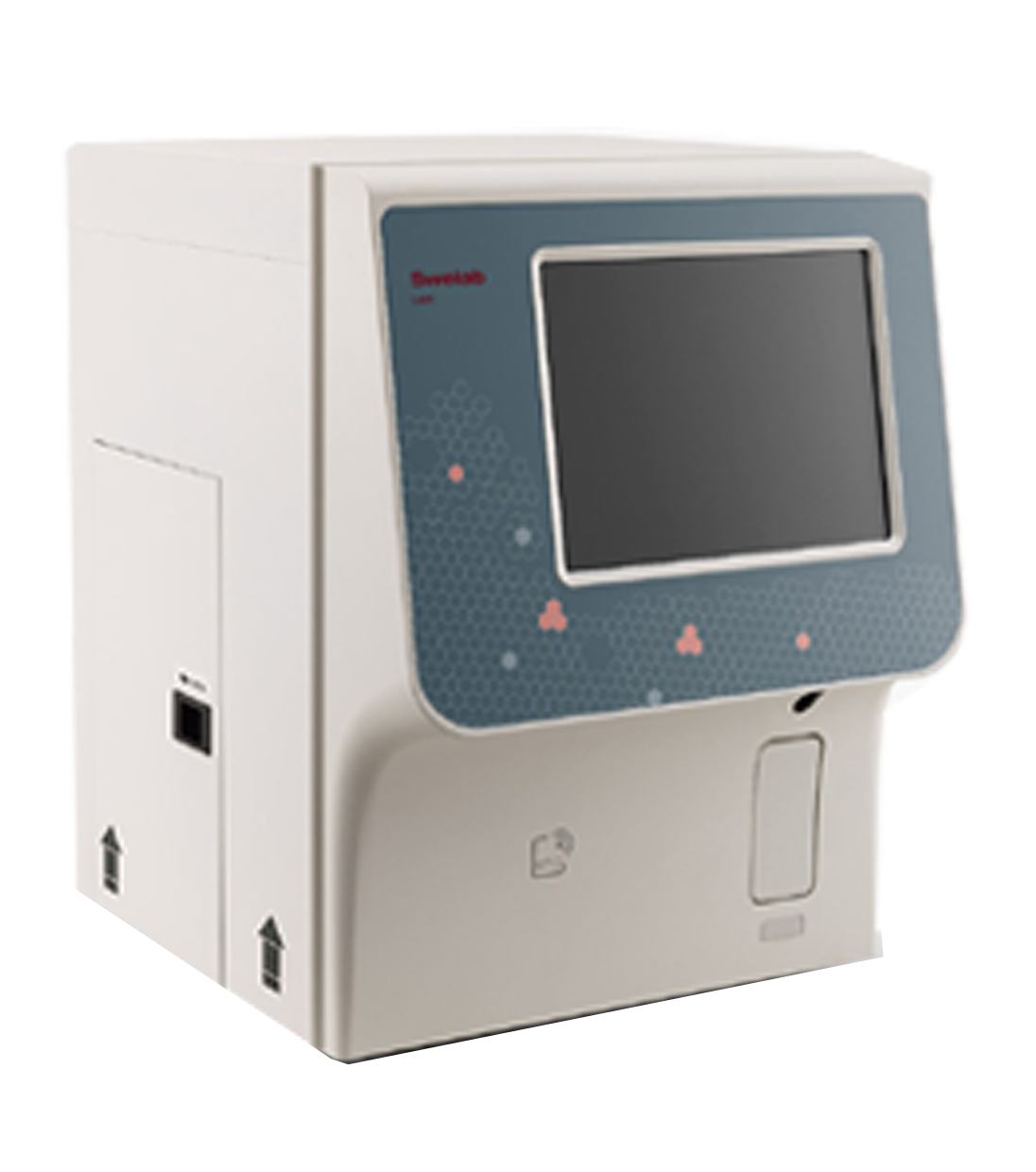

Swelab Lumi

29 parameters including 5-part WBC differential by
tri-angle laser scatter

  • 10,4 inch TFT touch screen
  • Throughput up to 60 samples per hour
  • 4 USB, 1 LAN port with bi-directional HL7 protocol
Specifications
Parameters

29 parameters: WBC, Lym%, Mon%, Neu%, Bas%, Eos%, Lym#,Mon#, Neu#, Eos#, Bas#, RBC, HGB, HeT, MeV, MeH, MeHe,RDW-CV, RDW-SD, PLT, MB\1, PDW, PCT, IG%, IG#, AL%, AL#, P-LCC, P-LCR 3 histograms for WBC, RGB and PLT 3 DIFF scattergrams and 1 BASO scattergram

Display

10.4 inch TFT Touch Screen

Throughput

Up to 60 samples per hour

Data Storage Capacity

Up to 50,000 results including numeric and graphica

Communication

LAN port supports HL7 protocol

Interface

4 USB Ports, 1 LAN port

Printout

External Laser printer / lnkjet printer, various printout formats and user-defined formats

Dimension

364mm(L) x 431 mm(W) x 498mm(H)

Net Weight

26.5KG

Principles

lmpedance method for RGB and PLT counting Cyanide free reagent for hemoglobin test

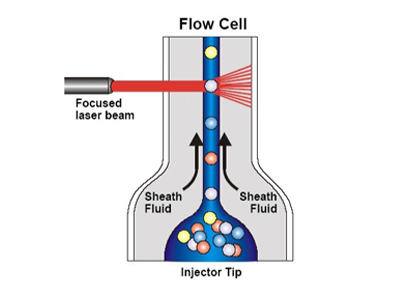

Flow Cytometry (FeM) + Tri-angle laser scatter method for WBC 5-part differential analysis and WBC counting

Reagent

DIL-C Diluent, LYC-1 LYSE, LYC-2 LYSE, CLE-P

Better equipped to deliver results you can trust

Building on a proud tradition dating back to 1956, Swelab Alfa Plus analyzers now come packed with the latest user-friendly technologies that make it even easier for you to obtain, analyze and share accurate hematology results.

Swelab is in the prime of its life, raising quality and reliability to ever-higher levels. There’s never been a better time to put one in your lab.

Accuracy you recognize and appreciate

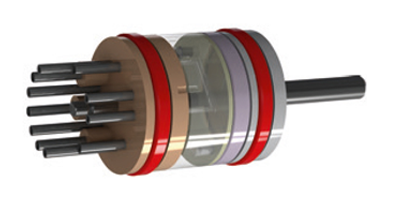

Every Swelab Alfa Plus analyzer comes equipped with a high-precision shear-valve. No other sampling technique collects blood as precisely as a shear valve. It’s a critical part of the measurement that you’ll see reflected in the accuracy of every result you report. It ensures that Swelab remains at the very forefront of hematology analysis – the one instrument you know you can trust

Furthermore, not only is the Swelab shear valve extremely precise, it’s also completely maintenance-free. As well as accurate results, you enjoy significantly reduced maintenance costs. The three-year warranty we give on this component further emphasizes the trust we put in its quality and reliability.

Connect and communicate like never before

To its traditional virtues of reliability and accuracy, Swelab Alfa Plus adds better connectivity and improved communication protocols. Laboratories can now exchange patient results and quality control data with interested parties quicker and more securely than ever before.

All analyzers feature a host of connection possibilities for printers, keyboards, barcode readers, USBs, etc. This better connectivity includes HL7 industrial standard protocol, now available together with the previous XML protocol. LIS connection is via a LAN port. Furthermore, this improved connectivity is very easy to use, as the front-panel USB port demonstrates.

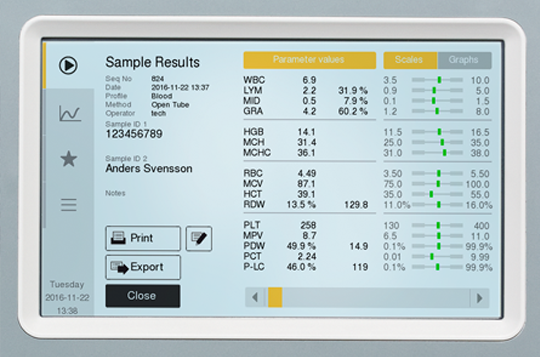

Modern graphical interface boosts user-friendliness

Already renowned for its ease-of-use, Swelab Alfa Plus includes a 7-inch touch-sensitive display featuring a 800 × 480 pixel WVGA color screen with a landscape view.

Simple-to-read and easy-on-the-eye, this modern interface boosts Swelab’s user-friendliness even more. Different set-up views, each optimized for different user situations, facilitate routine use. The most common include a sample view showing ‘classical’ graphs and all parameters. A second sample view features the much-used reference-bar display that makes clear indication if results are outside of their expected range.

Intuitive software simplifies work processes

Powerful software keeps Swelab Alfa Plus instruments in the front line of automated hematology analysis, simplifying work processes and giving users better control of sample results and patient records.

ID field-length has been increased to 50 characters and patient memory extended to 50,000 records, for example. The menu system is both simple-to-understand and easy-to-navigate.

Sampling to full CBC in about one minute

Three Swelab Alfa Plus analyzers include MPA micro-pipette adapter sampling. Based on a simple finger prick sample taken directly from the patient, this unique feature transforms Swelab into what is probably the fastest blood cell counter in the world today.

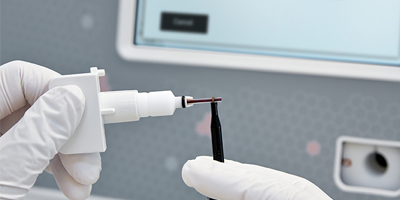

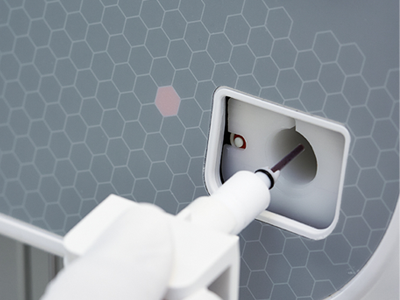

Simply make a finger prick, draw blood into the special 20 μl micro-capillary tube, slide it into the adaptor and insert in the analyzer. In about one minute later, you see the full blood status on the touch-sensitive display. There’s no preparation required, no pre-dilution, no vacuum tubes and no needles.Since making a finger prick is largely painless, MPA is the ideal way to take and analyze blood samples from children. For blood banks, it’s the perfect tool for making fast, pre-donation blood testing. It also saves the vein for donation.

Gets on with the job all by itself

Much as you’ll enjoy working with your Swelab analyzer, there will be times when you need to leave it to analyze a whole batch of samples by itself.

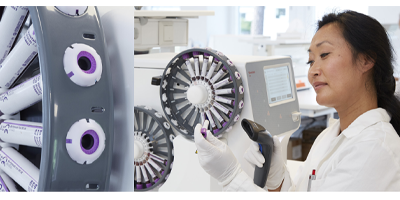

For these occasions, the Sampler model is the ideal instrument to have on your bench. As the top-of-the-range model in the Alfa Plus series, it’s the perfect walk-away analyzer and ideal for many small to medium-sized hospitals. Just pre-load up to 2 x 20 samples and let it do the work!.

PLT extended count

Swelab Alfa Plus provide a PLT extended count feature for more accurate PLT results in the critical low PLT range.

In case of patient sample with severe thrombocytopenia detected the analyzer will activate PLT extended count, counting three times as many platelets as in normal count mode, to be able to give a more accurate PLT result. PLT results analyzed with extended count will be marked with an asterisk (*).

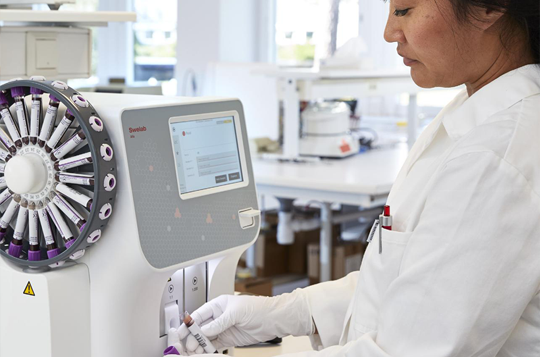

Swelab Alfa Plus Sampler is ideal for small to medium-sized hospitals needing walk-away analysis functionality

Modern user-interface. Its clean, uncluttered design promotes efficient operation and accurate assessment of results.

Pre-load up to 2 x 20 samples and let Swelab Alfa Plus Sampler do the work.

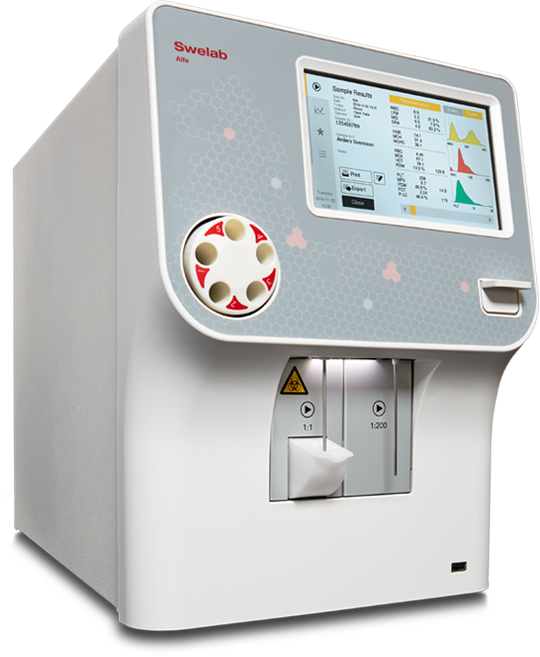

Multiple models for all laboratory needs including unique ‘walk-away’ autosampler

Building on a proud tradition dating back to 1956, Swelab Alfa Plus analyzers now come packed w ith the latest user-friendly technologies that make it even easier for you to obtain, analyze and share accurate hematology results.

  • 7-inch touch-sensitive display with landscape-view WVGA color screen.
  • Powerful software with simple-to-understand, easy-to-navigate menus.
  • nterface design promotes smooth operation and accurate assessment of results.
  • Soft lighting plus ergonomic design simplify sample handling.
  • USB port is evidence of much improved connectivity and communication.
  • The familiar Swelab design houses many new features and functions.
Swelab Alfa Plus Basic

Even the basic model includes shear-valve technology.

Swelab Alfa Plus Standard

Five-sample mixer is ideal for doctors’ offices and small labs.

Swelab Alfa Plus Cap

Closed-tube sampling minimizes risks from contaminated blood.

Swelab Alfa Plus Sampler

For up to 2 x 20 samples. Just load and walk away.

Model characteristics Basic Standard Cap Sampler
Built-in tube mixer
Micro pipette adapter (MPA)
Maintenance-free shear valve
Pre-dilution mode
Cap-piercing device
Sampler
Specifications
Parameters

22 parameters;
WBC, LYM, MID, GRAN, LYM%, MID%, GRAN%, RBC, MCV, HCT, PLT, MPV, HGB, MCH, MCHC, RDW%, RDW, PCT, PDW%, PDW, P-LCR, P-LCC

Throughput
  • ≥ 60 samples/hour
  • ≤ 50 seconds, time to result, OT inlet
Sampling system

Maintenance-free shear valve

Precision
CV WBC: ≤ 1.7%
CV RBC: ≤ 0.9%
CV MCV: ≤ 0.4%
CV HGB: ≤ 0.5%
CV PLT: ≤ 3.0%
Reagents

2 reagents used for analysis

Dimensions and weight
Dimensions 395 x 295 x 475 mm (Basic/Standard/Cap)
(HWD) 395 x 340 x 475 mm (Sampler)
Weight ≤ 18 kg (Basic/Standard/Cap)
≤ 22 kg (Sampler)
Data storage and interface
QC software: Yes, including Levey-Jennings and Xb
Memory capacity: 50,000 samples
Display: 7 inch WVGA true color (24-bit) touch screen
Interface ports: 1 USB device/4 USB host/1 LAN port
